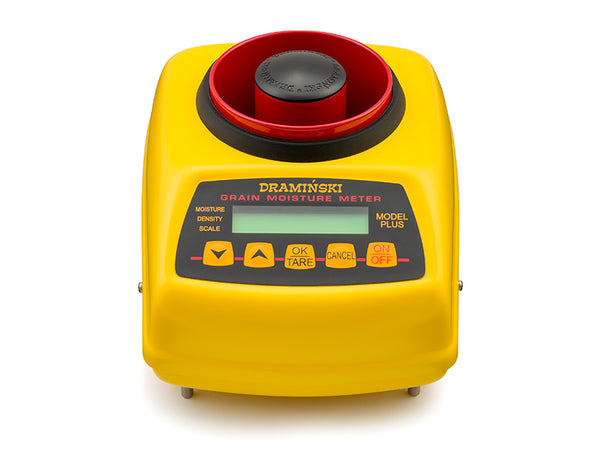

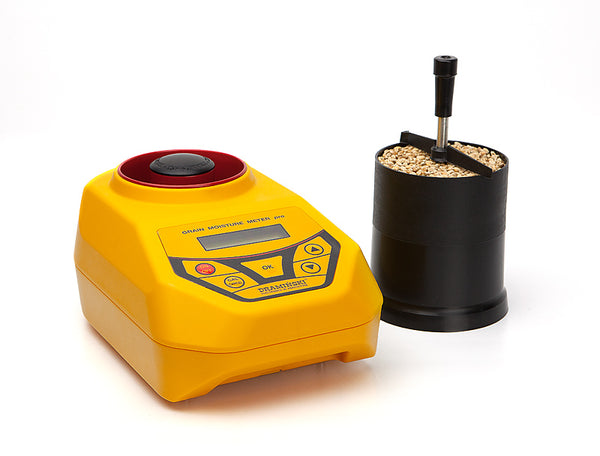

GMDM - a grain moisture and density meter

Regular price $1,003.56

Shipping calculated at checkout.

Designed for professionals to carry out accurate measurements of grain moisture and density. You will appreciate its reliability and easiness to operate.

It is programmed for the following species:

  • canola 4.0% – 20.0%
  • rye 9.0% – 24.0%
  • common wheat 9.0% – 24.0%
  • quality wheat 9.0% – 24.0%
  • triticale 9.0% – 24.0%
  • spring barley 9.0% – 24.0%
  • oat 9.0% – 24.0%
  • corn 9.0% – 24.0%

We can add new calibrations upon customer’s request:

  • buckwheat 7.4% – 25.0%
  • lupine 7.6% – 24.3%
  • horse bean 6.5% – 22.2%
  • soya 5.1% – 22.0%
  • green Coffee Arabica 5.5% – 3.0%
  • green Coffee Robusta 6.0% – 30.0%
  • cannabis sativa 3.5% – 17.5%

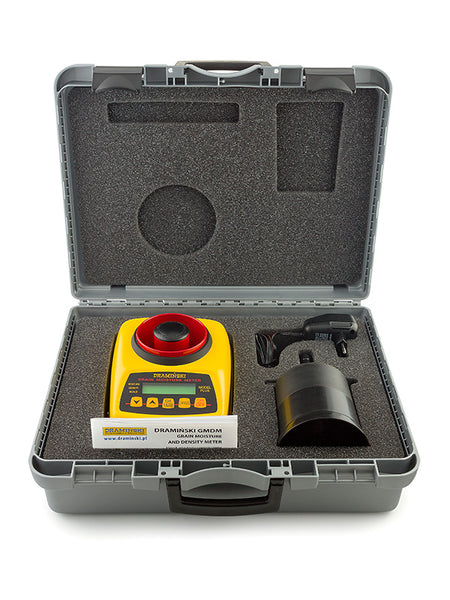

The set includes:

  • DRAMINSKI GMDM measure meter with built-in rechargeable batteries,
  • special semi-automatic dispenser,
  • power supply for recharging batteries,
  • transport case with foam,
  • manual.

Warranty

We grant 3-year warranty for our moisture testers.

Technical data

Dimensions 19.5 x 16.0 x 12.5 cm
Unit weight 1655 g (with the dosage tube) , 1490 g (without the dosage tube)
Sample loading semi-automatic, using dosage tube with slider
Sample volume 210 ml
Moisture measurement method weight-capacity
Display LCD, alphanumeric 2 x 16 digits
Keyboard membrane
Power supply internal Ni-Cd battery, 1000mAh capacity
Battery low indication automatic
Power input ~ 20 mA
Continuous operation on fully charged battery
about 45 h
Measurement control single chip microcomputer
Accuracy of moisture content measurement ±0,8% in range to 10% moisture level, above 10% ±0,04 of measured value +0,4% (for corn ±0,9% below 10% in range to 10% moisture level ±0,05 of measured value + 0,4%)
Accuracy of temperature measurement ± 1°C
Measurement resolution temperature – 1°C, moisture – 0,1%
Temperature compensation automatic
Recommended working temperature from 10°C to 35°C
Recommended storage temperature from 5°C to 45°C



Delivery within 2-45 business days.
