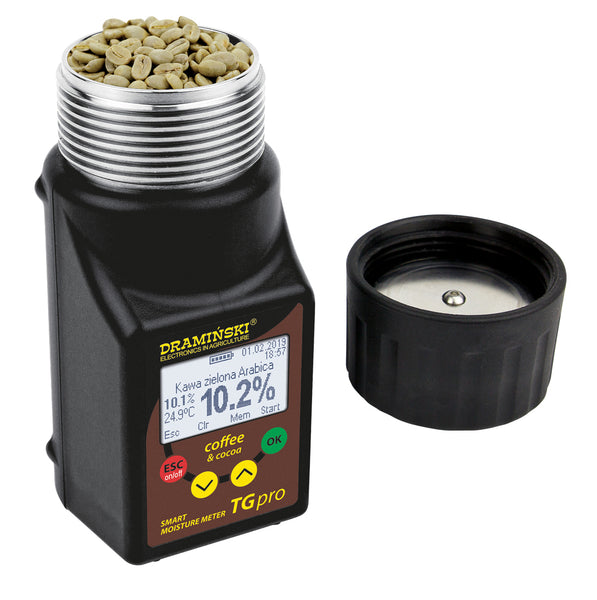

Precise coffee and cocoa moisture meter with sample compression. Ideal for coffee and cocoa production, processing, storage and transport.
Available species and measuring ranges:
- Cocoa 4% – 20%
- Green Coffee Arabica 8% – 30%
- Green Coffee Robusta 8% – 30%
- Parchment coffee Arabica 8% – 39%
- Dry coffee cherry 6% – 21%
- Coffee Arabica coarsely milled 2% – 10,5%
- Coffee Arabica finely milled 2% – 9,5%
- Coffee Robusta coarsely milled 2% – 11,5%
- Coffee Robusta finely milled 2,5% – 8,5%
- Roasted coffee Arabica 2% – 9,5%
- Roasted coffee Robusta 2% – 9%
The kit includes:
- DRAMIŃSKI TG pro coffee & cocoa moisture meter,
- test chamber clamping nut (with mounted 3V CR-2032 battery),
- carry case,
- carrying strap for the case,
- 4x AA, 1,5V alkaline batteries,
- a rubber cover for the mini USB port,
- USB cable for communication with a computer,
- transport packaging,
- professional user manual.
Warranty
We grant 3-year warranty for our moisture testers.
Technical data |
||
| Dimensions | 16,5 × 7,0 × 7,5 cm | |
| Device weight |
520 g (incl. battery and nut) | |
| Filling the chamber | manually | |
| Moisture measurement method | impedance on 4 frequencies | |
| Sample volume | 90 ml | |
| Measuring control |
single-chip microcomputer | |
| Power supply | 4 1.5V AA batteries + 1 3V CR-2032 battery | |
| Current input | 30 to 72 mA depending on user settings | |
| Approximate continuous operation time on a set of batteries | 77 hours with backlight set to 0% 54 hours with backlight set to 30% |
|
| Battery charge indicator | graphical | |
| Display resolution | moisture – 0.1%, temperature – 0.1°C | |
| Moisture measurement accuracy | ± 0,5% for standard grain ± 1% within the range up to 10% moisture content ± 1,5% within the range above 10% moisture content and may grow with the increase of sample moisture content |
|
| Temperature measurement accuracy | ± 0.5°C from 0°C to 85°C ± 0.9°F from 32°F to 185°F |
|
| Temperature measurement range | 0°C to 125°C | |
| Correction of indications | from the keyboard – modification option | |
| Data record | internal memory | |
| Internal memory capacity | – 50,000 measurements with date and time – 20 external temperature probes recognised automatically by ID number – language versions – 400 varieties |
|
| Memory status check | from the menu item | |
| External temperature probe | with digital temperature sensor, connected via mini-USB port | |
| Display | 2″ LCD with LED backlight | |
| Keyboard | membrane | |
| Temperature compensation | automatically included | |
| Additional features | real-time clock, saving measurements to memory (with date, time and sample number), data transmission to a computer, memory status preview, battery status preview, temperature measurement with external probe, change of operating mode (standard/advanced), modification of moisture indications, adding new varieties with special codes, average result calculation, automatic temperature compensation, pop-up menu, display operating parameter settings, language selection, temperature scale selection, automatic shutdown time change, data and software update, special software for managing data stored in the computer (generating reports, spreadsheets, graphs, printouts) |
|
| Recommended operating temperature | 10°C to 35°C | |
| Recommended storage temperature | 5°C to 45°C | |
Delivery within 2-45 business days.
